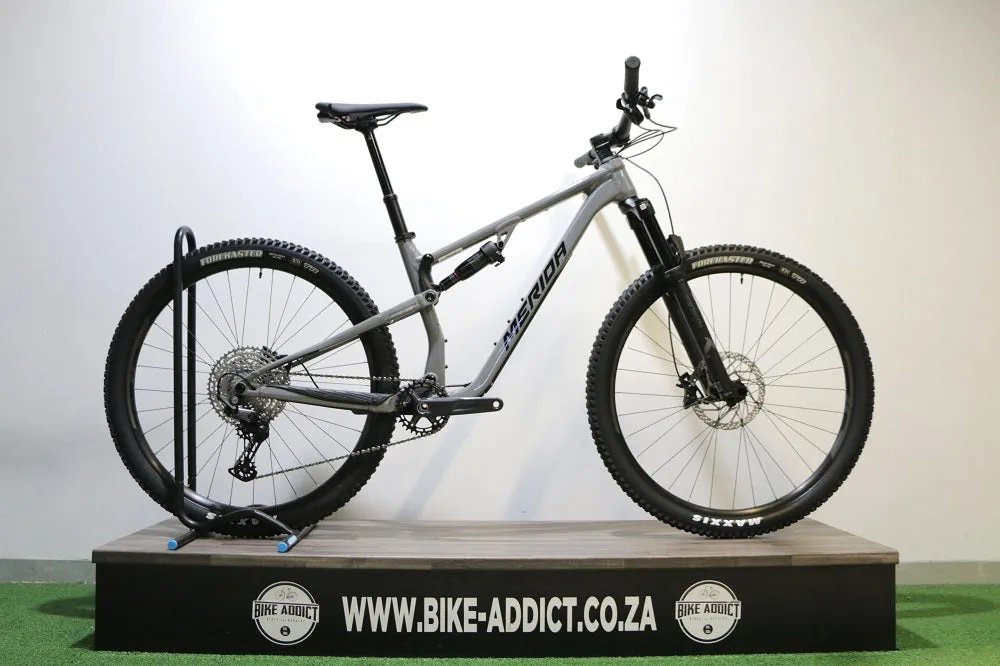

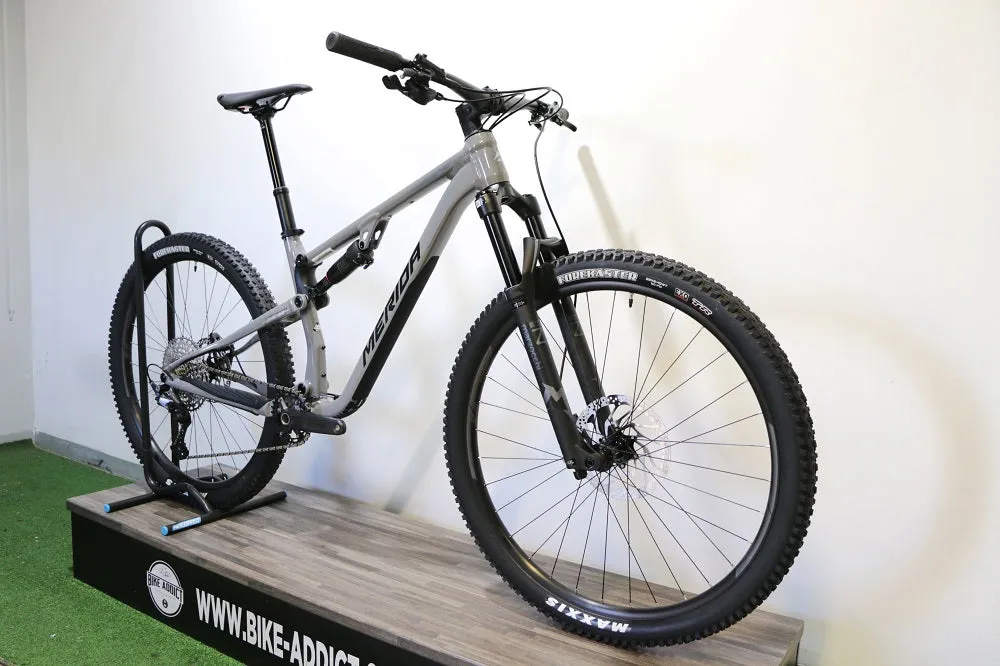

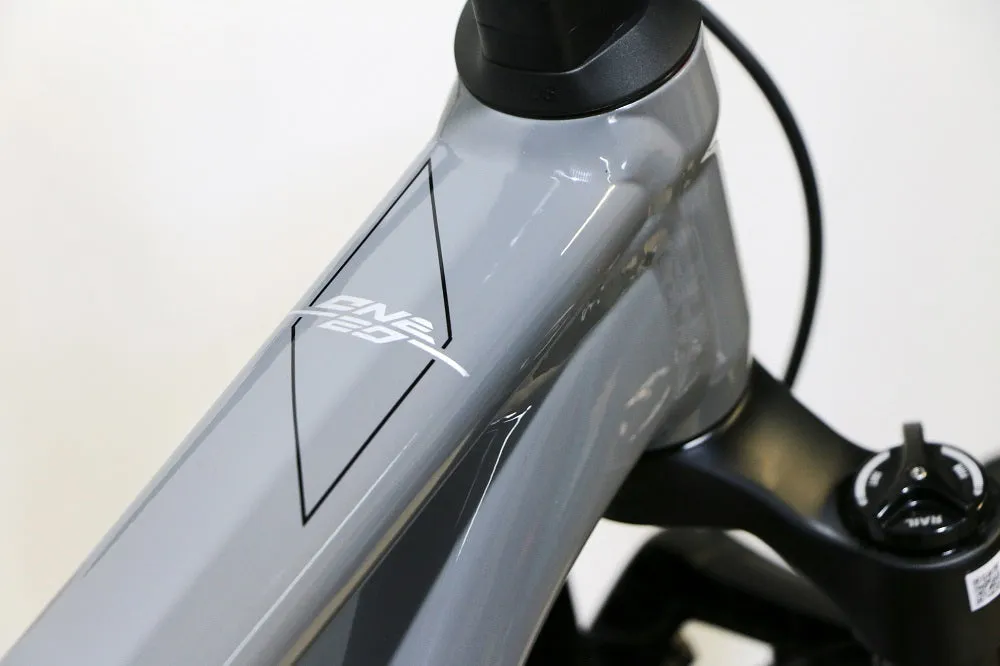

FRAME
ONE-TWENTY LITE V

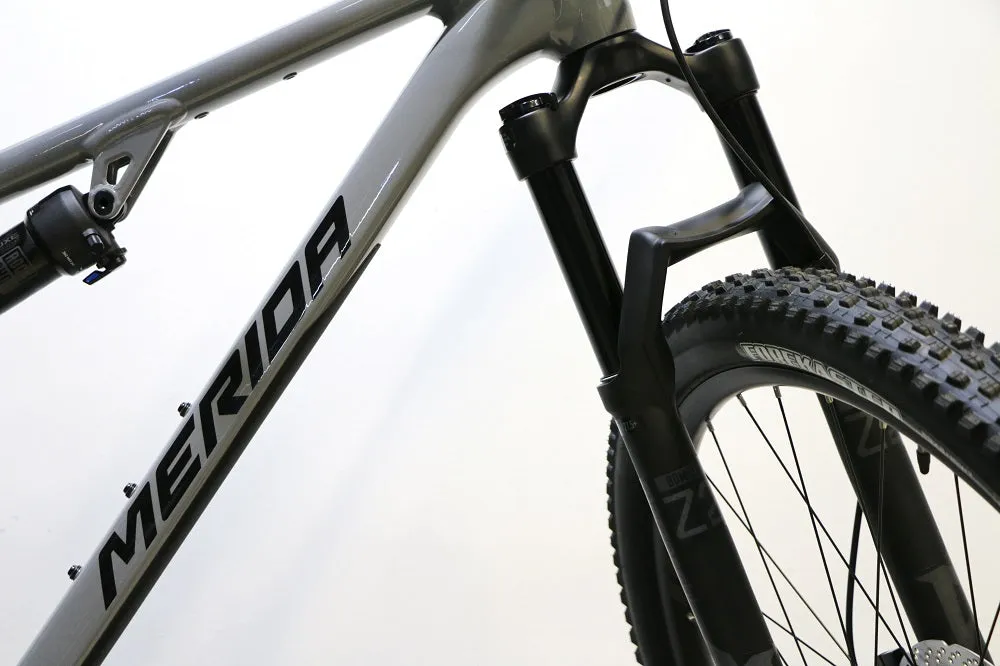

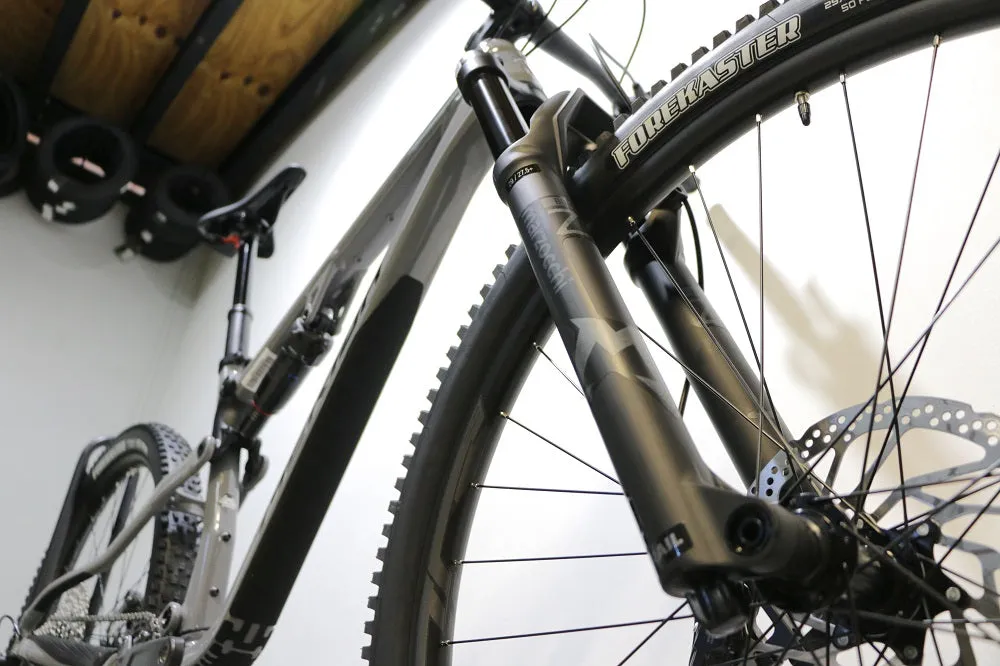

FORK
Marzocchi Z2
Air
130 mm suspension travel
Tapered
44 mm fork offset
platform
29x2.6" max. wheelsize

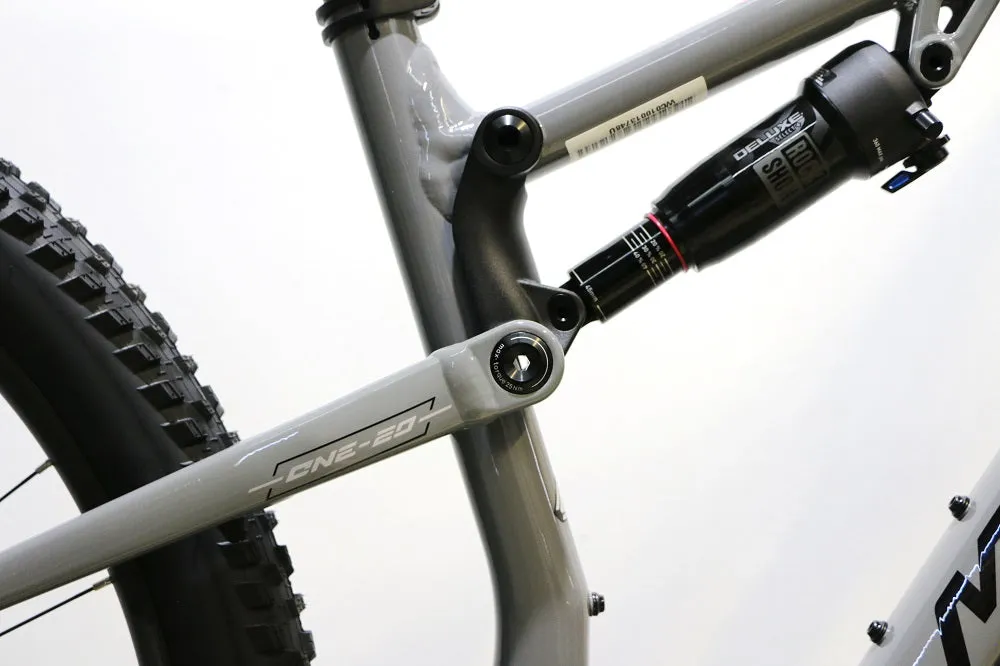

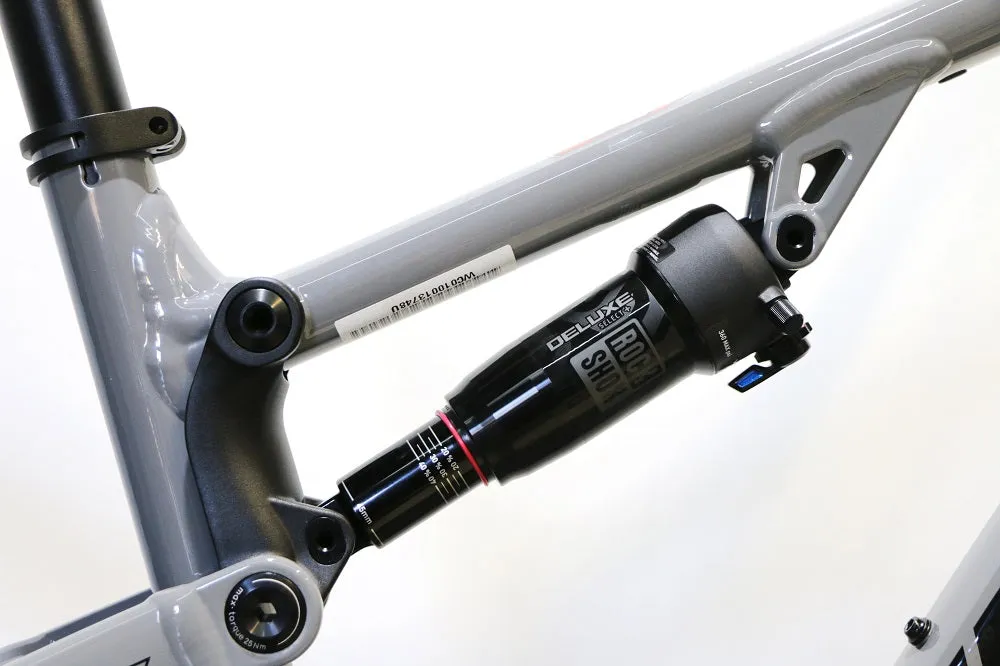

SHOCK
Rock Shox Deluxe Select

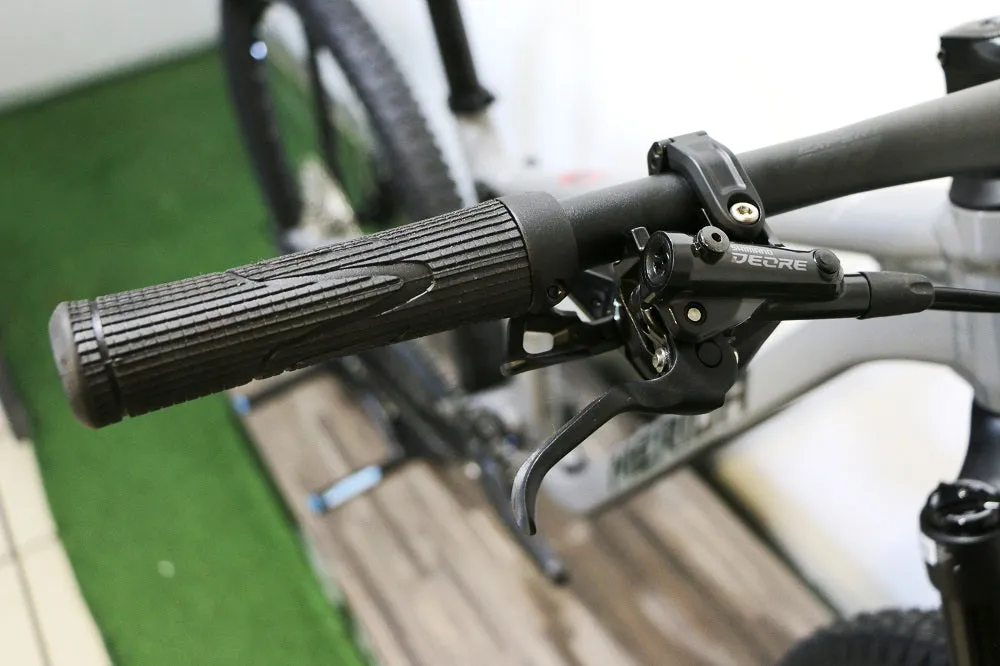

BRAKES
Shimano Deore M6120 / Shimano Deore M6100

ROTORS
Shimano RT30

HEADSET
Acros ICR MERIDA EXTERNAL neck

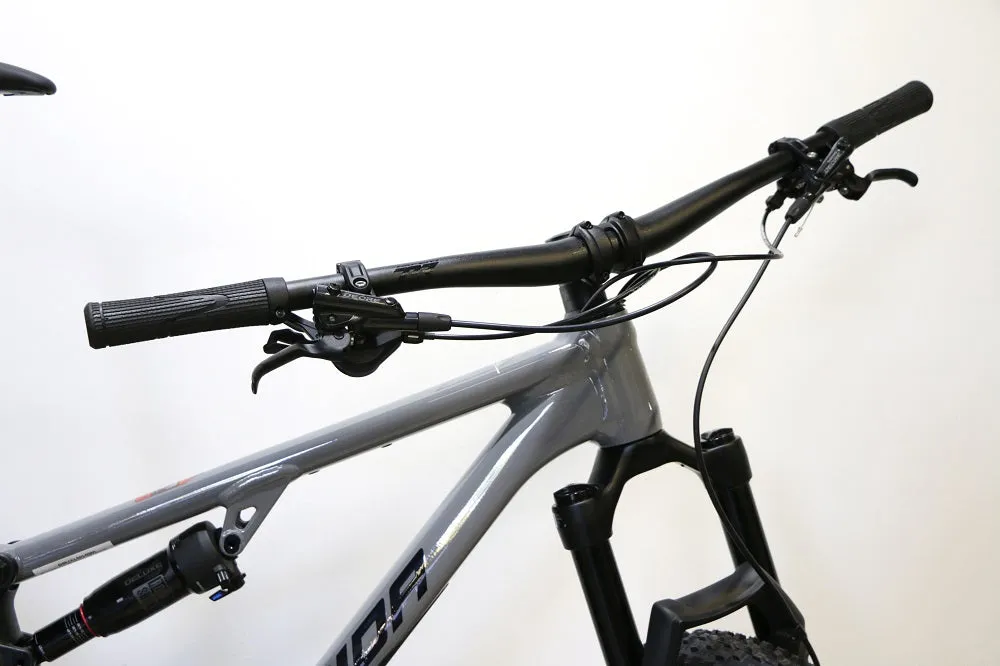

HANDLEBAR
MERIDA EXPERT TR II

HANDLEBAR STEM
MERIDA EXPERT eTRII

GRIP
MERIDA COMP EC

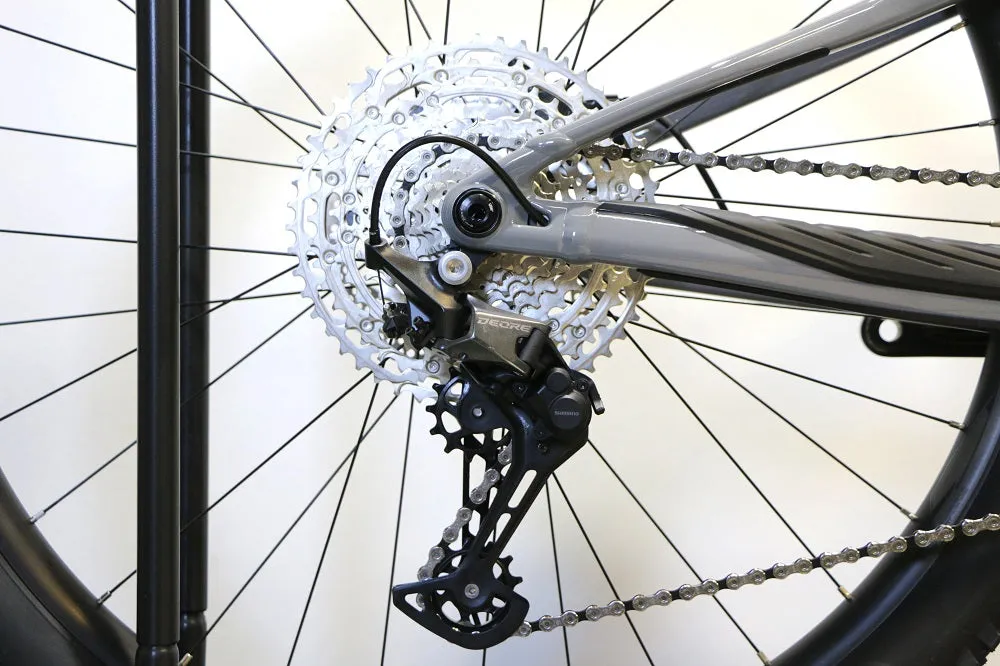

DERAILLEUR (R)
Shimano Deore M6100

SHIFTERS
Shimano SL-MT500-IL / Shimano Deore M6100

SEAT POST
MERIDA EXPERT TR II

SEAT CLAMP
MERIDA EXPERT

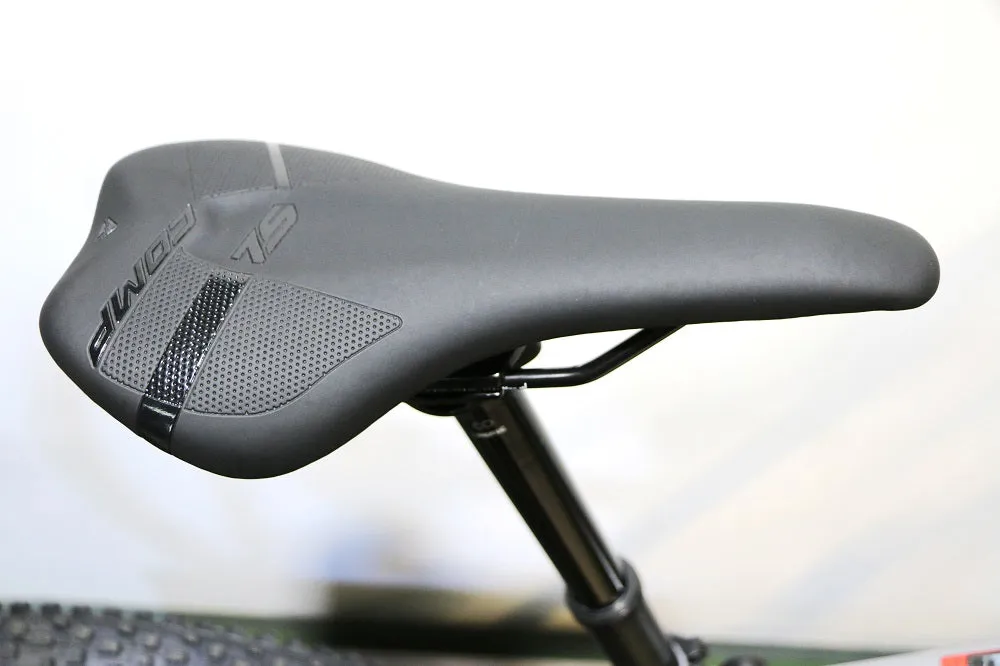

SADDLE
MERIDA COMP SL

CHAIN
KMC X12

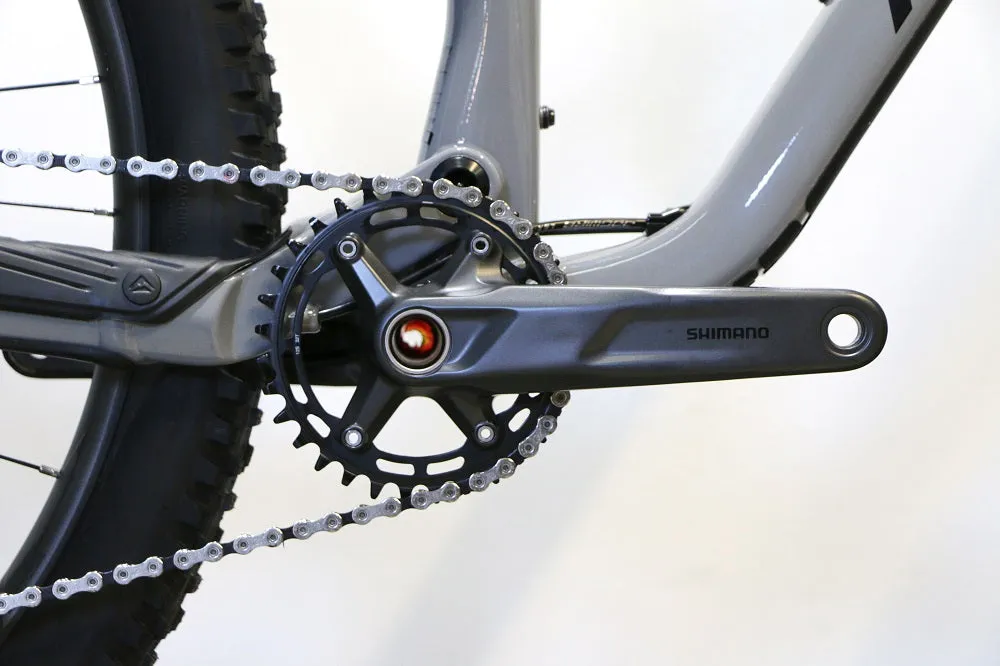

CRANK
Shimano Deore MT512
32 teeth
170 mm on all sizes

FREEWHEEL
Shimano Deore M6100
10-51 teeth
12 speed

BOTTOM BRACKET
Shimano BB-MT-501

HUBS
Shimano TC500-B / Shimano TC500-MS-B

RIM
MERIDA COMP TR
29 mm inner width
material: aluminium
Tubeless ready (tubeless tape and valves not included)

TYRE FRONT
Maxxis Forekaster
29x2.4"
fold
TR Dual

TYRE REAR
Maxxis Forekaster
29x2.4"
fold
TR Dual

AXLES
MERIDA EXPERT TR

SPOKES
Double Butted Black stainless

WEIGHT
15.21 kg

MAX. WEIGHT
135 kg
