FRAME
CHARGE 29" E-MTB ALLOY FRAME
MODERN GEOMETRY / MACHINE FORMED TUBING / INTERNAL BATTERY / INTERNAL CABLE ROUTING / QR 9mm REAR AXLE / DISC ONLY

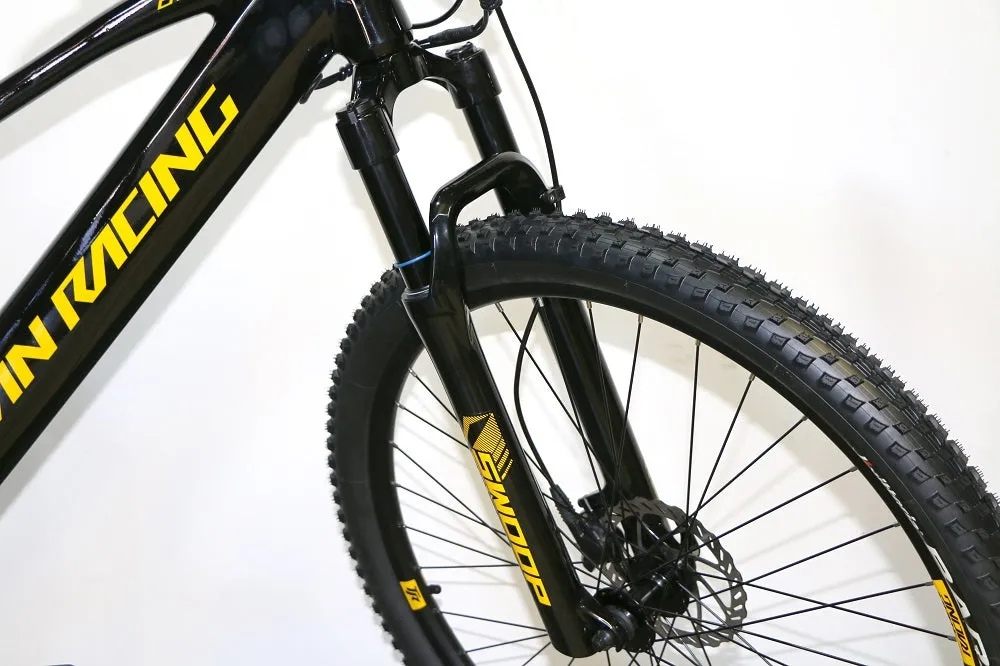

FORK
SWOOP 550 AIR 100mm
29 / 100mm / AIR SPRING / 9mm QR / LOCKOUT

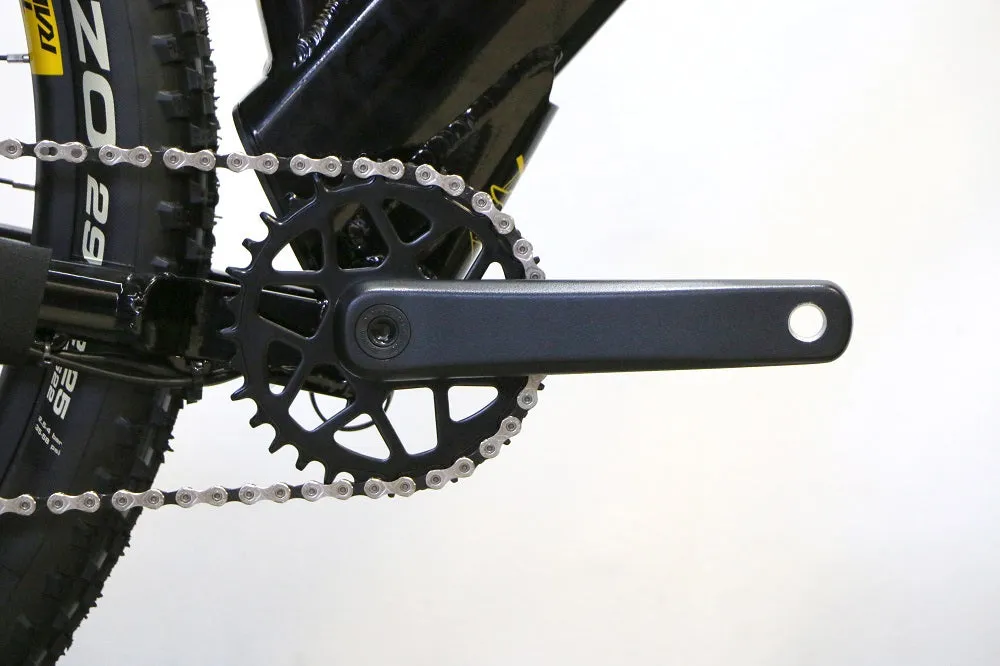

CHAINWHEEL
PROWHEEL 1 X 10 32T
PROWHEEL / 32T / 10 SPEED / ALLOY CRANK / STEEL CHAINRING / NO GUARD / S 170mm CRANKARM / M L XL 175mm CRANKARM

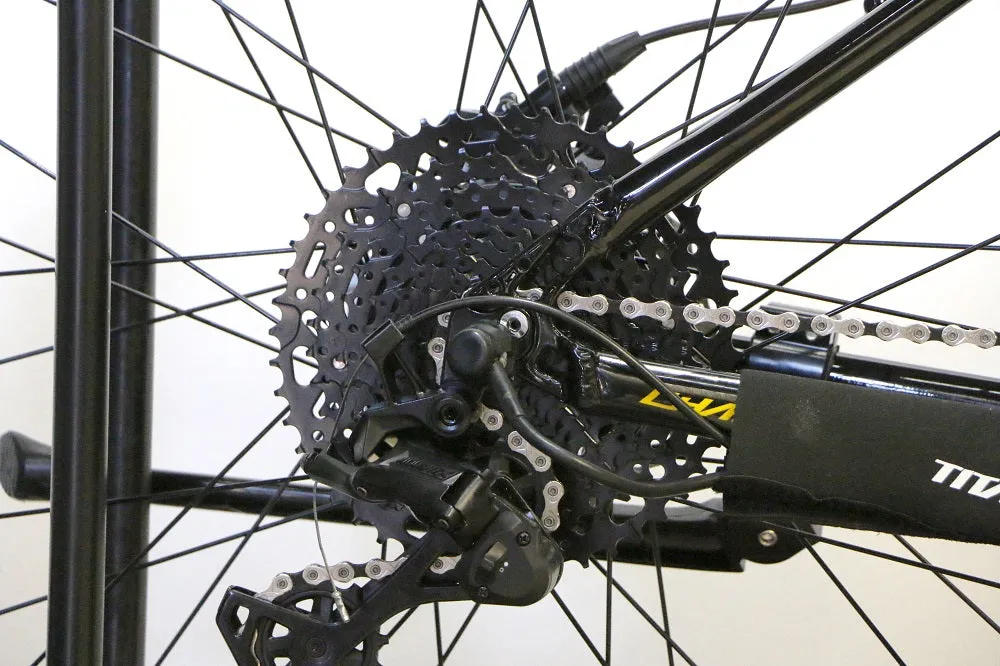

DERAILLEUR REAR
MICROSHIFT ADVENT X RD-M6205GM

SHIFTER RIGHT
MICROSHIFT ADVENT X SL-M9605-R

CHAIN
KMC 10

FREEWHEEL
MICROSHIFT CS-G104 11-48T

BB SET
NECO B910 CARTRIDGE TYPE

SPEED
10 SPEED

BATTERY
36V,10.40AH LG BATTERY CELL, 2600MAH

CONTROLLER
36V/250W

DISPLAY
S866,LCD,36V

SENSOR
DOUBLE HALL, KT-V12, 12 MAGNET

CHARGER
MDA257,36/48V/2A, SOUTH AFRICA STANDARD, 3 LEGS TYPE

MOTOR
XIONDA 36H ALLOY 350W 32KM/H

BRAKE LEVER
XOD XD-E500

BRAKE FRONT
XOD XD-E500 2 PISTON WITH 180mm

BRAKE REAR
XOD XD-E500 2 PISTON WITH 180mm

RIMS
29" DISC 36H
TR LYE-026B ALLOY DOUBLE WALL / 29*1.5*13G / H:18 W:27 / A/V

HUB FRONT
ALLOY QR
KT-K68F DISC QR TYPE M9*13G*36H*100*108

HUB REAR
XIONDA
XIONDA 36H ALLOY

SPOKES
STEEL ED BLACK

TUBE
29 A/V BUTYL

TYRES
VITTORIA BARZO 29" X 2.25"
XC / 1C COMPOUND / 26TPI NYLON RIGID BLACK WALL

GRIP
TR SLIDE LOCK GRIP

HANDLEBAR
TR COMP FLAT H/BAR 760mm
TR AL-312BT 31.8mm FOV 760mm

HANDLEBAR STEM
TR COMP H/BAR STEM
TR TDS-D479-8FOV 31.8mm ALLOY OVERSIZED S = 60mm / M/L = 80mm

HEADSET
NECO H373 C2861 SEMI TYPE ALLOY

SPACER
2 X 100MM

SADDLE
YBT-K245F041

SEAT POST
TR COMP 31.6mm
TR SP-C261 RIGID ALLOY 31.6mm 400mm

SEAT CLAMP
31.8 QR BLACK

KICKSTAND
TR QK-RA08 SIDE KICK STAND FOR E-BIKE
