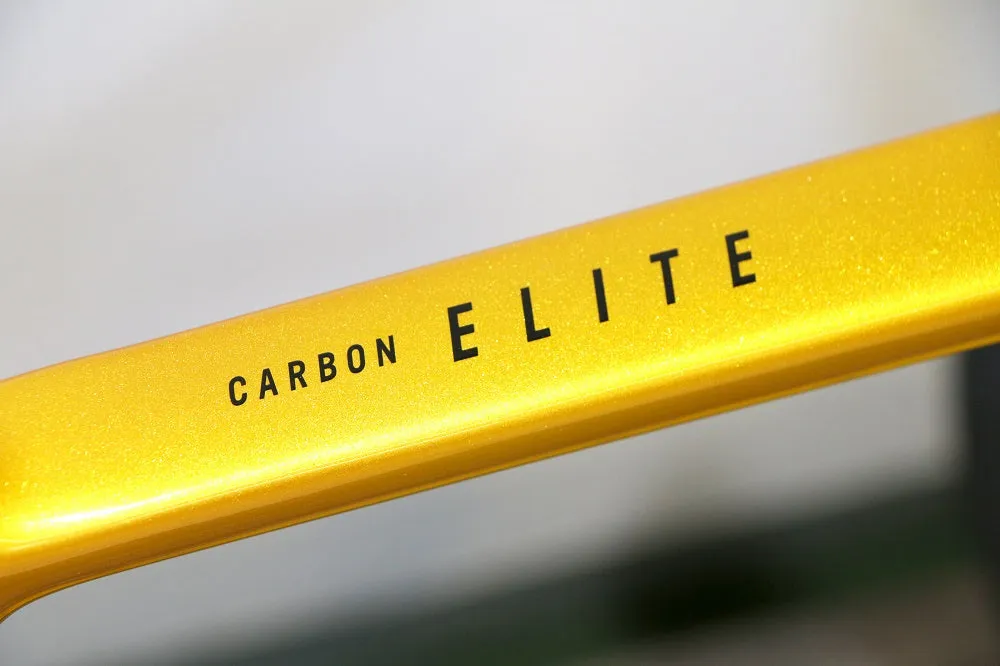

FRAME

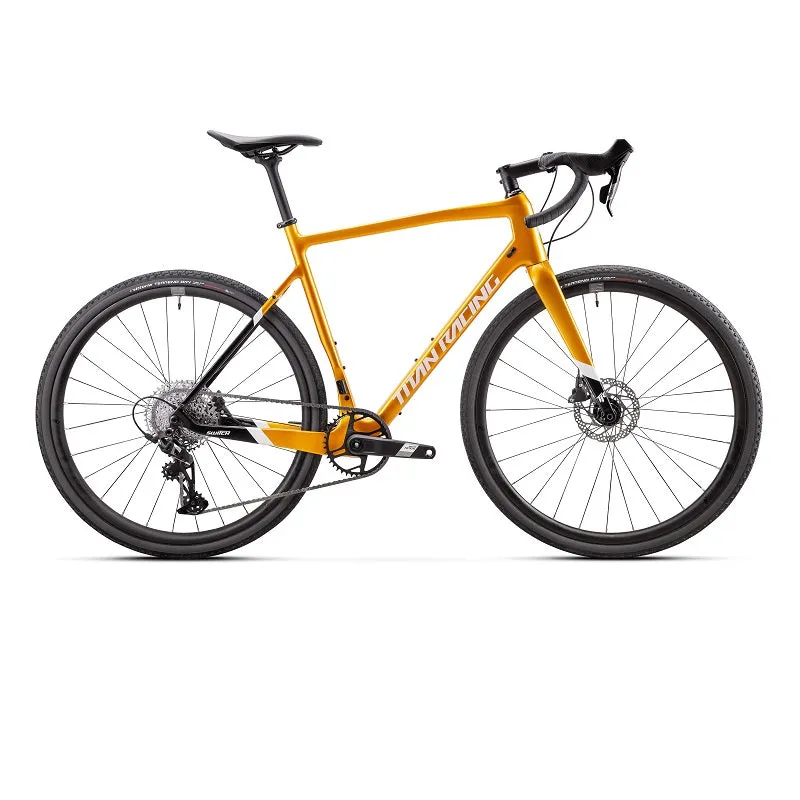

SWITCH CARBON GRAVEL FRAME
GRAVEL RACE GEOMETRY / HMF CARBON / INTERNAL CABLE ROUTING / 12mm THRU AXLE REAR / DISC ONLY

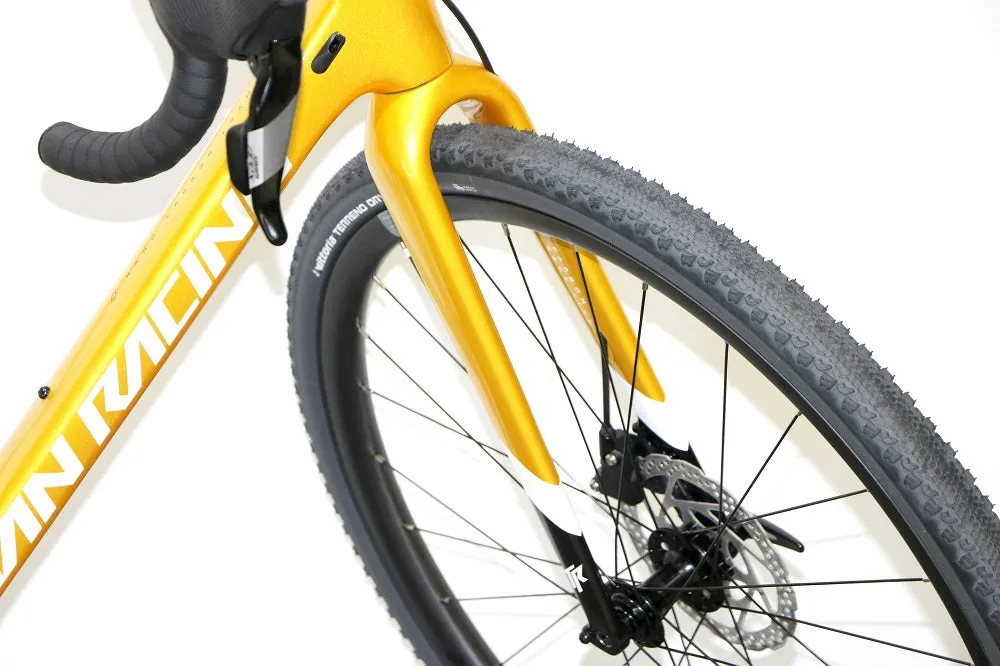

FORK
SWITCH CARBON 700C
HMF CARBON 12mm THRU AXLE

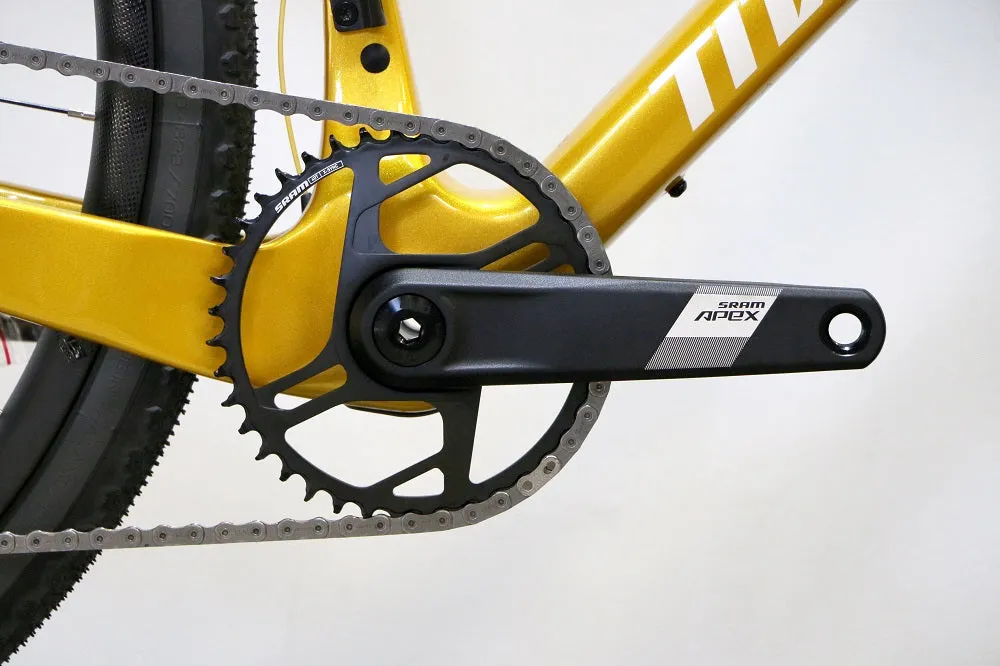

CHAINWHEEL
SRAM APEX 40T
SRAM APEX 40T / FC APEX 1 D1 DUB WIDE 175 42 AL / S = 160MM / M = 172.5MM / L XL=175MM

DERAILLEUR REAR
SRAM APEX

SHIFTER LEFT
SRAM APEX DB-APX-D1

SHIFTER RIGHT
SRAM APEX DB-APX-D1

CHAIN
SRAM APEX CN-APX-D1 12 SPEED

FREEWHEEL

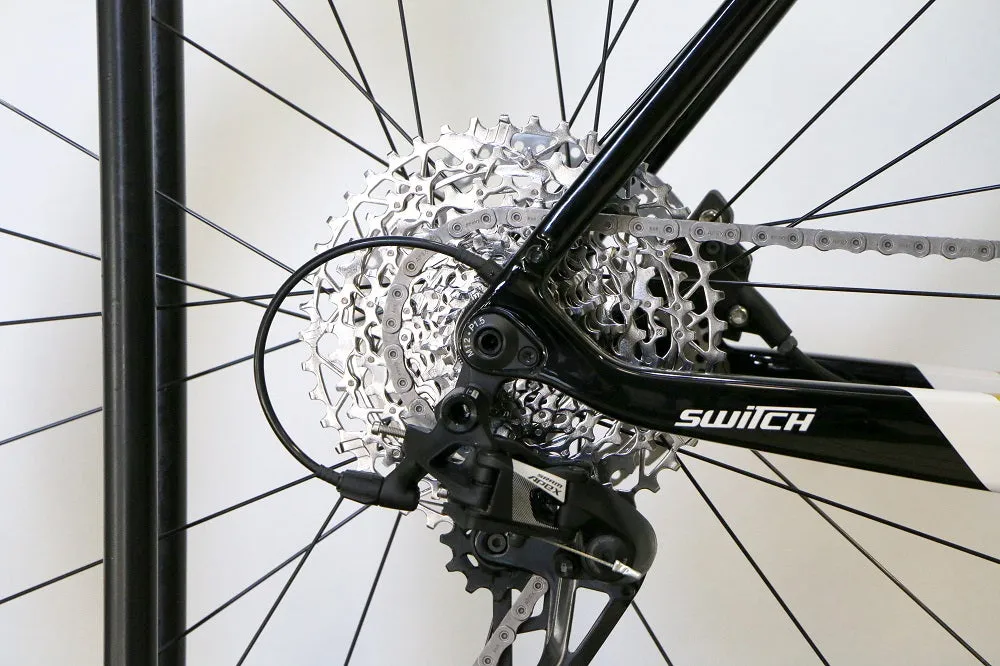

SRAM XPLR PG-1231 11-44T

BB SET
ATTACHED

SPEED
12 SPEED

BRAKE LEVER
ATTACHED

BRAKE FRONT
SRAM APEX HRDHYDRAULIC

BRAKE REAR
SRAM APEX HRDHYDRAULIC

RIMS
PRIME CARBON SLC 28 HOLE
PRIME CARBON SLC M32W25H9 APEX 32 HOLE, F/V

HUB FRONT
TR PRO DISC
RX-812, 2SB, THRU, 14Gx32H-M12x100MM

HUB REAR
TITAN PRO DISC
RX-305, 4SB, 8/9/10/11s, THRU, 14Gx32H-M12x142MM

SPOKES
BLACK STAINLESS

TUBE
700C F/V

TYRES
VITTORIA TERRENO DRY 700 X 38C
GRAVEL 120TPI NYLON / 1C GRAPHENE 2.0 COMPOUND / TNT / ANTHRACITE SIDEWALL

GRIP
PLAIN BLACK NO LOGO

HANDLEBAR
TR GRAVEL PRO H/BAR
HB-3057DB-ICR (Sram) 44W*125H*10 degrees / 31.8MM / S = 420mm / M L XL = 440mm

HANDLEBAR STEM
TR PRO H/BAR STEM
DA-205 3D FORGED AL6061 / 31.8mm BAR BORE / 28.6mm CLAMP I.D / 6 DEGREE RISE / XS S = 90mm / M L XL = 105mm

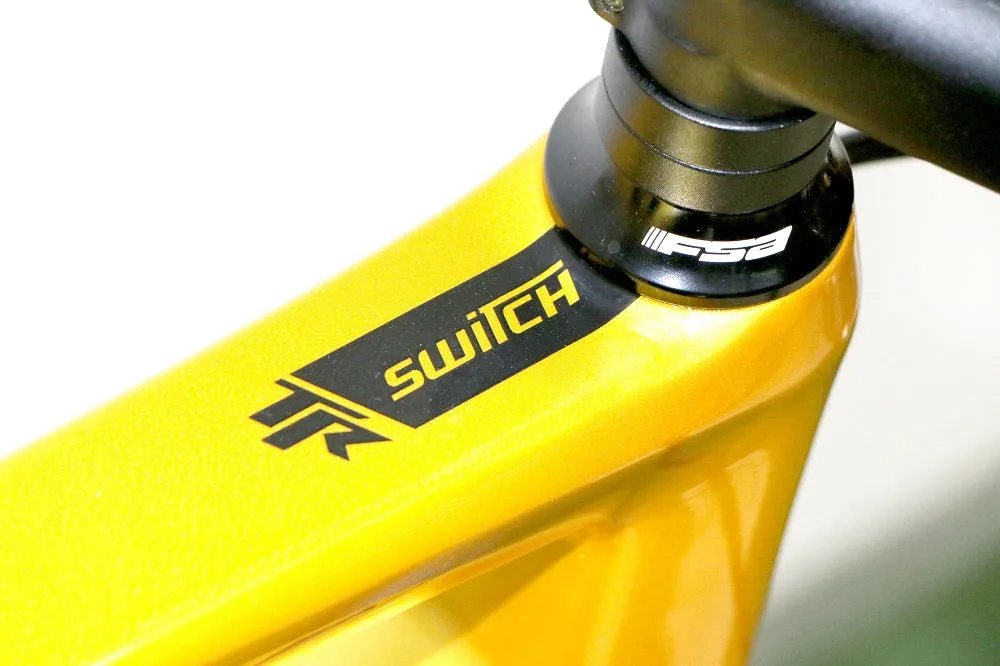

HEADSET
FSA

SPACER
2 X 10MM

SADDLE
FIZIK ALLIANTE GRAVEL

SEAT POST
TR CARBON PRO 27.2MM
FB SP-C212 CARBON RIGID 27.2mm 400mm

SEAT CLAMP
MX-95RT ALLEN KEY TYPE
